Libra PBX Server

Libra PBX Server is a new generation product, using VoIP technology, designed for medium-to- large enterprises with up to 1,000 users. Libra provides security of work and freedom of connections - in any technology, with any phone set and operating system (Windows, Linux, MAC OS X), and even in any casing - STD wall mountable or RACK for ICT cabinets. Libra offers you more flexibility and it is even more user- and installer-friendly.

Intelligent Call Distribution with call queuing, call recording and advanced voice menu scenarios enable professional handling of even intensive phone traffic. An innovative See Who’s Talking solution will enrich daily telephone contacts thanks to the video transmission.

Scheme - Libra PBX Server

Platan Libra PBX Server as the centre of an ICT system
Platan Libra PBX Server as the centre of an ICT system

Libra - Key features

  • Call queuing and Intelligent Call Distribution with professionally recorded system messages and euphonious melodies
  • Embedded multi-channel call recording
  • Platan Intelligent Networking (PIN) of Platan Libra and Proxima servers.
  • Multi Phonepossibility of connecting up to four phones (including the mobile phones) on one extension number – NEW!
  • Innovative See Who’s Talking solution – video calling available to any number of users, support of IP videophones, Platan Video Softphone app.;
  • See Who Wants to Come in – support of IP video door phones and Platan Video Viewer free app. (NEW!)
  • Teleconferences, conference rooms (NEW!).
  • Boss-secretary scenario (limited access to privileged users).
  • Full freedom of services and extensions numbering.
  • Local and remote web-based management.
  • Runs on Windows, Linux and Mac OS X thanks to an application based on the Java environment.
  • Integrated internal voicemail for all users.
  • PZK® Cost Management Programme.
  • User Zone accessible via a web browser.
  • Remote access for installers via MyServer platform.
  • Integrated multiple GSM cards – cheap calls to mobile networks.
  • Audio module and external devices control – automatically or using any phone.
  • Support of call center Naso CC, CRM, taxi, hotel software and other via PCTI protocol and Platan TAPI.
  • Two casing types – Libra STD to be hung on the wall or 19" RACK cabinet.

Call centre features

  • call schemes - multi-level voice menu system distributing the incoming calls with IVR (Interactive Voice Response); practically unlimited number of freely defined call schemes instead of previous infolines, with possibility of enabling call recording at any level; up to 1h of messages included;
  • call queuing with information about position in queue and estimated waiting time with possibility of setting the queue limits and/or waiting time

Call queueing in Libra PBX Server
Call queuing in Libra PBX Server

  • free call transferring and passing from one call scheme to another - now the call can be transferred and left on any call scheme, e.g. in another department, where calls are answered by different group of consultants, with distinctive announcements and queues
  • professionally recorded system messages and euphonious melodies;
  • up to 25 callers listening to one voice announcement;
  • Intelligent Call Distribution:
    • Uniform Call Distribution (UCD),
    • distribution to the group according to the selected subject
    • distribution on the basis of the calling line identification presentation CLIP - Automatic Call Distribution (ACD)
    • call forwarding to other extension, mobile phone or voicemail system when the user is busy, logged out or fails to answer
    • Black Lists of intrusive calls
    • numbers with VIP status - defining the queue priority numbers etc.
    • time for notes - definable time for call answerers in Hunt Groups to make notes after every answered call, enter data to database etc., during this time new calls will be directed to other people
  • channel limits for selected trunk line bunches in outgoing or incoming traffic (all incoming calls or calls incoming to selected call schemes) - it can be used for instance in a health center with one PRA line; with intensive incoming traffic the channel limits permit to save some free channels also for outgoing calls
  • embedded multichannel recording of up to 30 simultaneous calls with Agent 003 application
  • possibility of enabling call recording at any IVR level;
  • precise choice of users, lines and type of calls (incoming, outgoing, internal) to be recorded - NEW!
  • "never record" option for selected users (e.g. directors) - NEW!
  • embedded 25-channel voicemail system (up to 25 simultaneous users)
  • global phonebook with up to 3000 entries
  • up to 128 individual phonebooks
  • free numbering of all function dial numbers and escape code (eg. 9 instead of 0 to call the external number)

Automatic Call Distribution (ACD) and Interactive Voice Response (IVR) within the Libra server
Automatic Call Distribution (ACD) and Interactive Voice Response (IVR) within the Libra server

  • See Who's Calling - Calling Line Identification Presentation (CLIP) on all phones displays and in Platan CTI software
  • support of Naso CC - dedicated call centre software, offering advanced statistics and extended call centres features
  • support of Taxi123 software for taxi corporations

Cost Management Programme

  • Penny application -  individual and group billing
  • Calls statistics in tables and graphs
  • User Zone - your settings online, accessible via web browser:
    • Call history
    • Hunt Groups log in/out status
    • Active call forwarding to extensions and other external numbers
    • Voicemail status (active/inactive, number of new and all messages, message limit)
    • Quick and handy help with current set of server function codes
    • View of global phonebook for proprietary phones users.
  • VEK (R) - VoIP Cost Eliminator:
    • Access to cheap Internet telephony without additional VoIP gateways or cards
    • Unique Call Through function - call from a mobile phone via VoIP. Libra recognizes the given mobile phone numbers and directs them to VoIP network

Call Through – make cheaper calls via VoIP using your mobile phone
Call Through – make cheaper calls via VoIP using your mobile phone

  • Integrated GSM - cheap calls from analogue phones to mobile phones
  • I/O card - audio module and control of external devices (up to 8 inputs/8 outputs)
  • Up to 1000 individual accounts
  • Up to 1000 DDI (Direct Dialling In) numbers
  • Up to 1000 virtual extensions
  • Call buffer up to 100,000 records
  • Restrictions on outgoing calls
  • ARS/LCR - Least Cost Routing



IP networks integration

  • Embedded VoIP - up to 1000 universal VoIP ports (IP EXT or IP GW):
    • VoIP protocol: SIP 2.0
    • codecs: G.711 uLaw, G.711 aLaw, G.726, G.729a,  GSM
    • up to 6 VoIP64 cards (up to 64 VoIP channels each).
  • Platan Intelligent Networking (PIN) - offers:
    • possibility of networking up to five Proxima, Proxima plus and Libra servers (consisting of multi-units Libra servers in any type of casing);
    • up to 1,000 users in uniform telecommunication system with coherent extension numbering;
    • use of all 64 VoIP channels of Libra-VoIP 64 card to ensure the efficient communication among servers;
    • simpler configuration and dialling simplicity - caller dials on any telephone any extension number within a system;
    • Calling Line Identity Presentation (CLIP);
    • server connections "all to all" type or connection limitations like "all to one" or "one to all";
    • standard server functionality such as call forwarding, call transferring, Hunt Groups.

Platan Intelligent Networking (PIN) – intelligent networking of Libra servers using VoIP

  • Libra Web for remote management via web browser.
  • Working in different operating systems: Windows, Linux, Mac OS X thanks to the application based on Java environment.
  • Independent power back-up systems.
  • Unique crossover connections panels arranging the server's cabling.
  • Embedded, quick ethernet interface (LAN) - 10/100 Base-T.
  • Enhanced security thanks to different access levels and complex passwords.
  • Compatibility with Platan CTI software.
  • Open PCTI software interface supporting other CTI systems, call centre software or software for taxi enterprices.
  • Hotel interface (PlatanHotel.dll) supporting the hotel software, FIAS (Fidelio Interface Application Specification) supporting Micros Fidelio hotel software.
  • Local or remote management via ethernet network.
  • Remote access via ISDN modem and LibraPC offline software.
  • Compatibility with IP DECT phones.
  • RACK 19" casing (1 unit - 4U) for ICT cabinets or STD casing for wall mounting.











Libra STD PBX Server

Now Libra PBX Server is avaiable also as Libra STD version - in casing to be mounted on the wall. Advantages of such solution:

  • two-coloured metal casing = screen against electromagnetic interference
  • no need to aquire ICT cabinet and have own server room = lower installation cost of the whole system
  • backup power supply hidden inside the server, silent operation = high installation aesthetics and lower costs
  • universality = the same cards and drivers as used in the RACK version
  • possibility of connecting up to six units = expansion elasticity unprecedented so far in systems not mounted in RACK cabinets
  • networking Libra servers using VoIP in Platan Intelligent Networking = uniform telecommunication system supporting up to 1000 users
  • full functionality known from Libra PBX Server RACK version

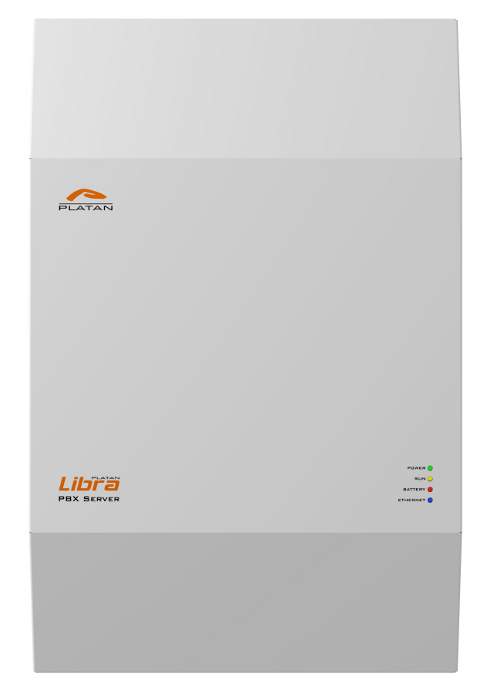

Libra STD PBX Server

Libra STD PBX Server
- casing to be mounted on the wall

Libra PBX Server may comprise of up to six independent units. In every unit you have 15 universal slots at disposal, which globally permits you to use:

  • up to 64 analogue trunk (CO) lines
  • up to 128 ISDN BRA (2B+D)
  • up to 8 PRA (30B+D)
  • up to 720 analogue extensions
  • up to 128 digital proprietary extensions
  • up to 6 VoIP64 cards (up to 64 VoIP channels on each)
  • up to 1000 VoIP ports
  • up to 16 SIM cards (GSM)
  • up to 1000 users in total
  • up to 30 recording channels



Libra PBX Server
Platan Libra PBX Server



To adapt the system to your needs choose one of six controllers, each with different features and capabilities.

The configuration available for a Libra STD version is the same. Up to 6 units of Libra PBX Servers in STD version may be connected thus creating a bigger system. The maximum configuration is then the same as in the RACK version.

Libra PBX Server - dimensions

One unit dimensions* (RACK 19" casing)

height width depth weight
176 mm
(4U)
483 mm
(19")
330 mm 12 kg

* additionally up to 3 crossover connections panels (RJ-45 patch panels) for every unit, 1U height each



One unit dimensions - STD casing**

height width depth weigth
626 mm
406 mm
167 mm up to
18.6 kg

** the Libra unit weight in STD casing (wall mountable) includes the weight of power back-up batteries mounted inside.



Crossover connections panel (RACK 19" casing)

height width depth weight
44 mm
(1U)
483 mm
(19")
50 mm up to
650 g



Power back-up panel*** (RACK 19" casing)

height width depth weight
80 mm
(2U)
483 mm
(19")
245 mm up to
16 kg

*** one power back-up panel serves one or two Libra units in RACK casing

Product gallery

Libra STD PBX Server
Libra STD PBX Server
Libra STD PBX Server
Libra PBX Server - RACK one unit
Libra PBX Server - RACK  two units
Libra PBX Server - RACK  three units
Libra PBX Server - RACK  four units
Libra PBX Server - RACK 5 units
Libra PBX Server - RACK 6 units
Libra PBX Server - installation in ICT cabinet (one unit, crossover connecions panels, power back-up panel)
Libra PBX Server - installation in ICT cabinet (one unit, crossover connecions panels, power back-up panel)
Libra PBX Server - installation  in ICT cabinet  (two units connected to the power back-up panel, crossover connections panels)
Libra PBX Server - installation  in ICT cabinet  (two units connected to the power back-up panel, crossover connections panels)
Libra PBX Server - installation  in ICT cabinet (three units, crossover connections panels, power back-up panels)
Libra PBX Server - crossover connections panels arranging the cabling
Power back-up panel for one unit
Power back-up panel for two units
Libra PBX Server - crossover connections panel
