Door phones
Thanks to door phones integrated with the Platan IP PBX or PBX Server, you do not need an additional door phone installation. You can open doors and gates by means of simple phones. The offer includes single, double or multiple button door phones from the DB 07 series. These devices do not require additional adapters. Entry gates may be opened via fixed-line or mobile phone.
Door phone models
| Door phone | DB 07 1P | DB 07 2P |
|---|---|---|
 |
 |
|
| Number of buttons |
1
|
2
|
| Front panel dimensions (mm) height/width |
240 / 113
|
240 / 113
|
| Casing dimensions (mm) height/width/depth |
225 / 102 / 43
|
225 / 102 / 43
|
Accessories:
Casing for external mounting of DB 07 1P-2P door phone.

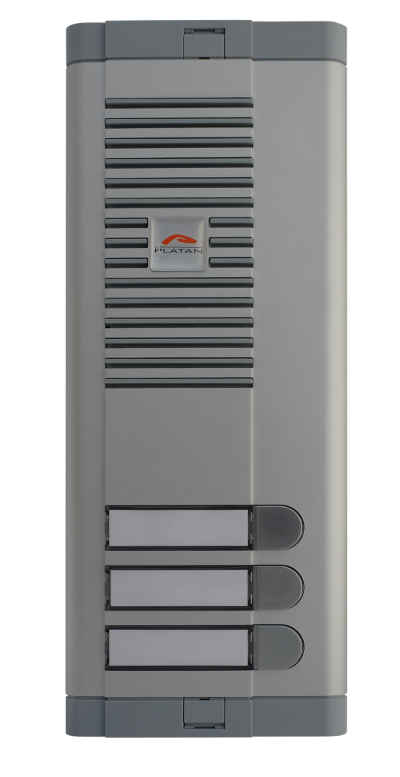

| Door phone | DB 07 3P | DB 07 4P |
|---|---|---|
 |
 |
|
| Number of buttons |
3
|
4
|
| Front panel dimensions (mm) height/width |
288 / 113
|
288 / 113
|
| Casing dimensions (mm) height/width/depth |
273 / 102 / 43
|
273 / 102 / 43
|
Accessories:
Casing for external mounting of DB 07 3P-8P door phones.
| Door phone | DB 07 6P | DB 07 8P |
|---|---|---|
 |
 |
|
| Number of buttons |
6
|
8
|
| Front panel dimensions (mm) height/width |
336 / 113
|
384 / 113
|
| Casing dimensions (mm) height/width/depth |
321 / 102 / 43
|
369 / 102 / 43
|
Accessories:
Casing for external mounting of DB 07 3P-8P door phones.
Note:
Every DB 07 door phone, regardless the number of buttons, is connected to one PBX extension.
